Made for the install that has to last.

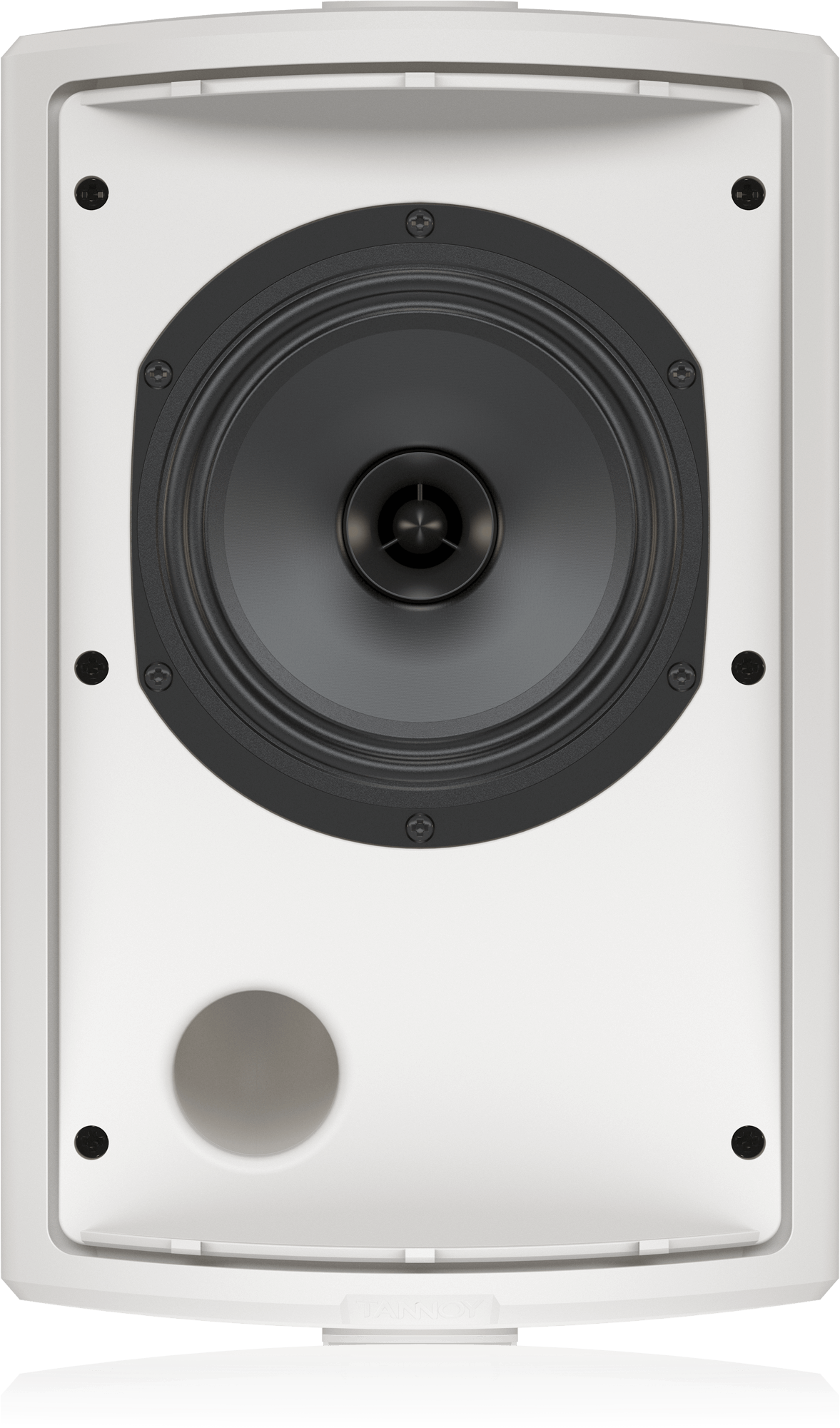

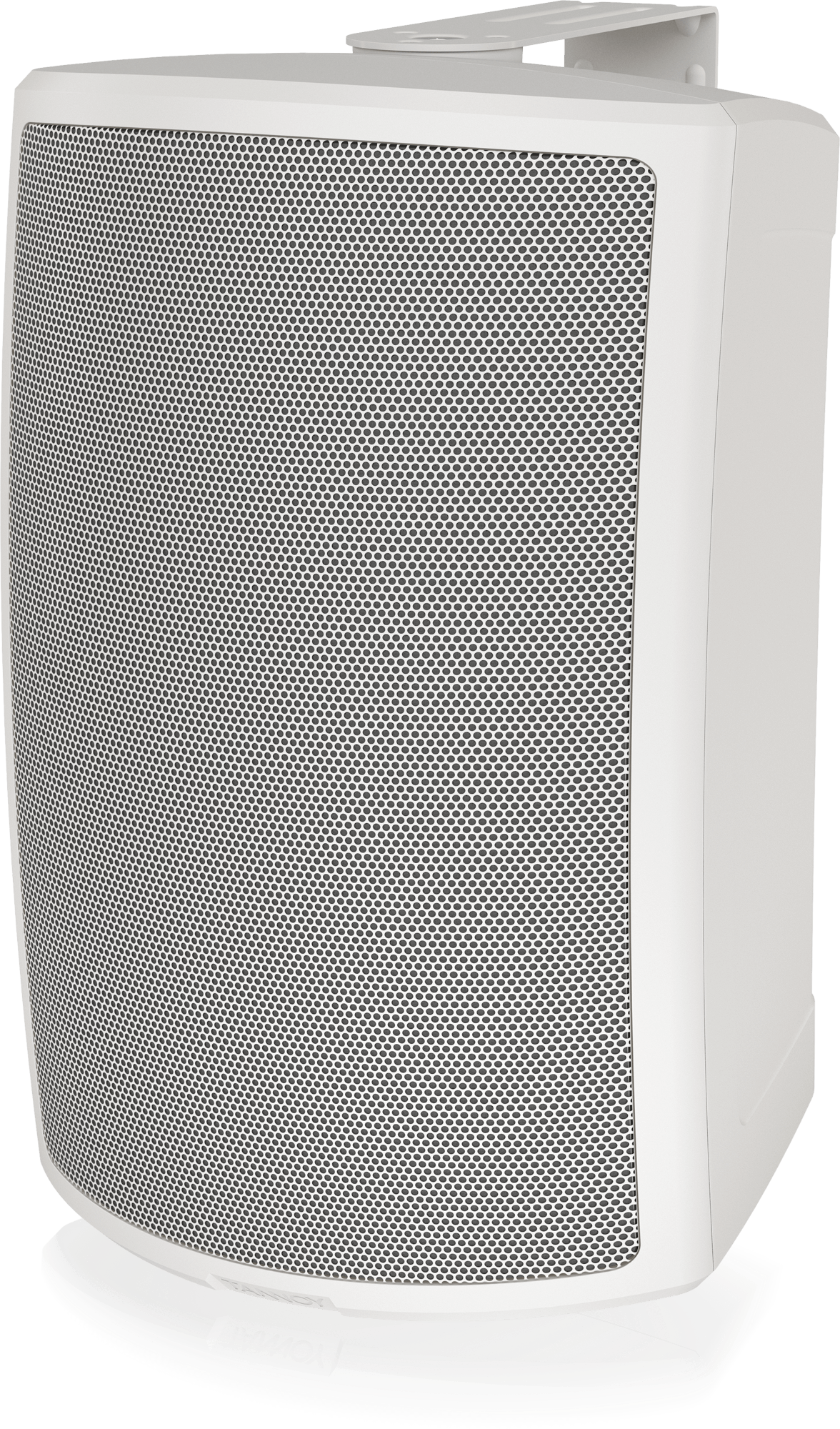

A job that comes back costs an installer time. The AMS 6DC-WH is built for long-term reliability in surface mount applications. Omnimagnet technology powers its 165 mm Dual Concentric driver.
Outdoors, with the cable entry covered
Outdoors, route the wires through the cable entry cover in the box. Keep the neck opening facing down to minimise entry of moisture or particulates.
Fixed firmly, with a backup
The yoke bracket fixes to a structural surface, with buffers between bracket and loudspeaker. A secondary support line connects to the safety tab at the rear. Wiring goes to a removable locking connector with screw terminals.
Set the line before you connect
You find the tap switch right over the wiring connector. New from the box, its tap is on low impedance. Switch it for 70/100 V before connecting a 70/100 V amplifier output.
