VX 12Q

The VX 12Q is a new class of device that delivers high SPL, low distortion audio coverage in a complete high performance loudspeaker cabinet. It provides a high impact solution for medium-to-large scale sound reinforcement in high-SPL applications such as bars and clubs, as well as being well suited for midscale portable/live PA applications. Thanks to its twin driver design for extended low frequency reproduction and flexible mounting options, the VX 12Q is also ideally suited for use complimenting much larger systems, making it an excellent choice for both installed and portable applications. The VX 12Q can also be configured for bi-amp operation.

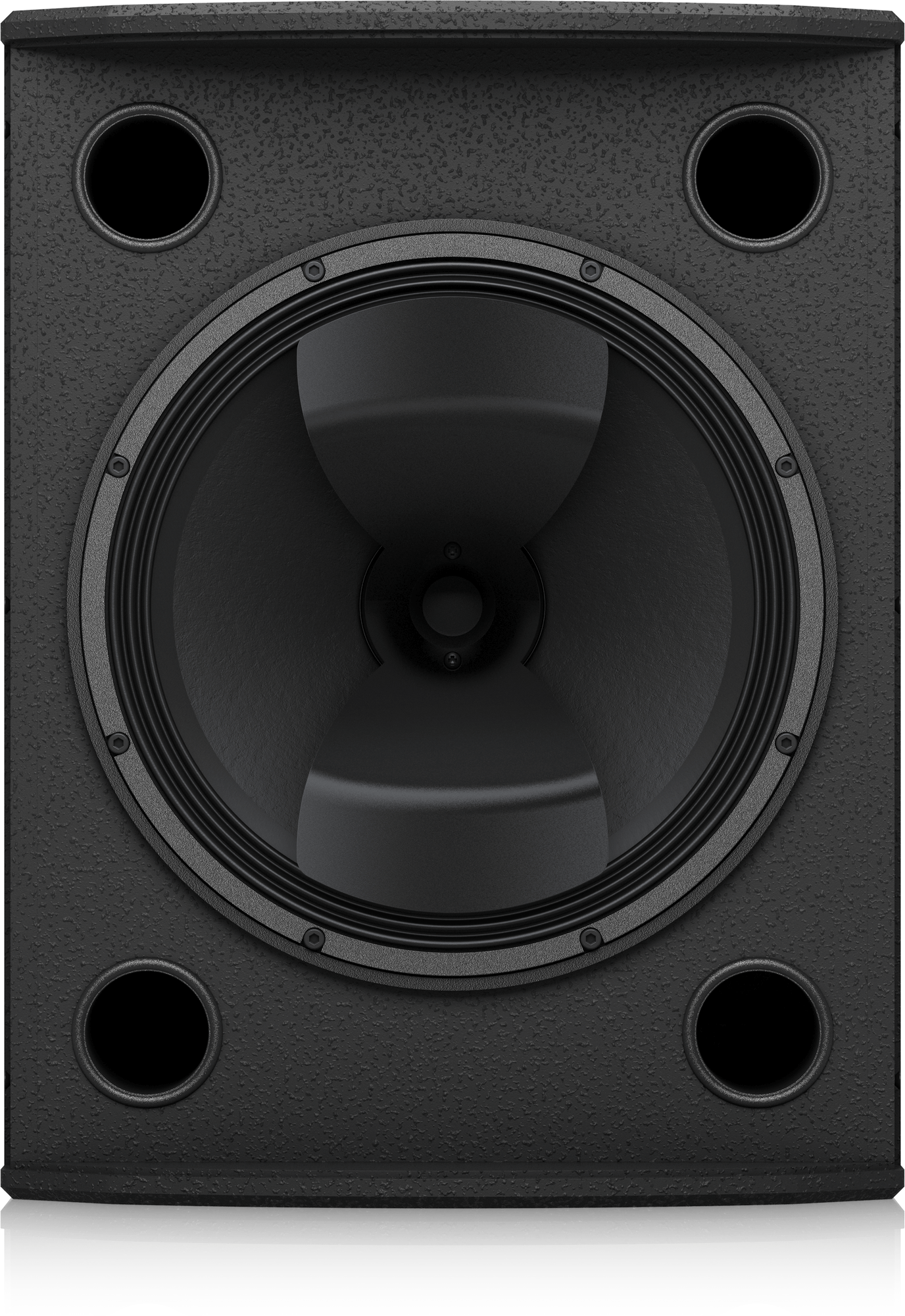

The 1,400-Watt 305 mm (12") version of TANNOY’s VX Series exclusive point source loudspeakers, VX 12Q’s PowerDual driver ensures high power output with high sensitivity and exceptional efficiency. A proprietary Q-Centric waveguide is provided for tighter pattern control, delivering precise 75º horizontal x 40º vertical dispersion for optimum coverage, exceptional forward gain.

VX 12Q’s trapezoidal enclosure design provides a multitude of placement options including: installed performance sound reinforcement, FOH, floor monitor, high SPL delay, and more. A blanking plate for optional VTH pole mounting is provided for placement atop a subwoofer in portable PA applications. Mounting options include horizontal and vertical mounting yokes (available separately), and 8 M10 Flying inserts. All hardware has been tested and certified for a greater than 5:1 safety ratio – giving installers complete peace of mind.

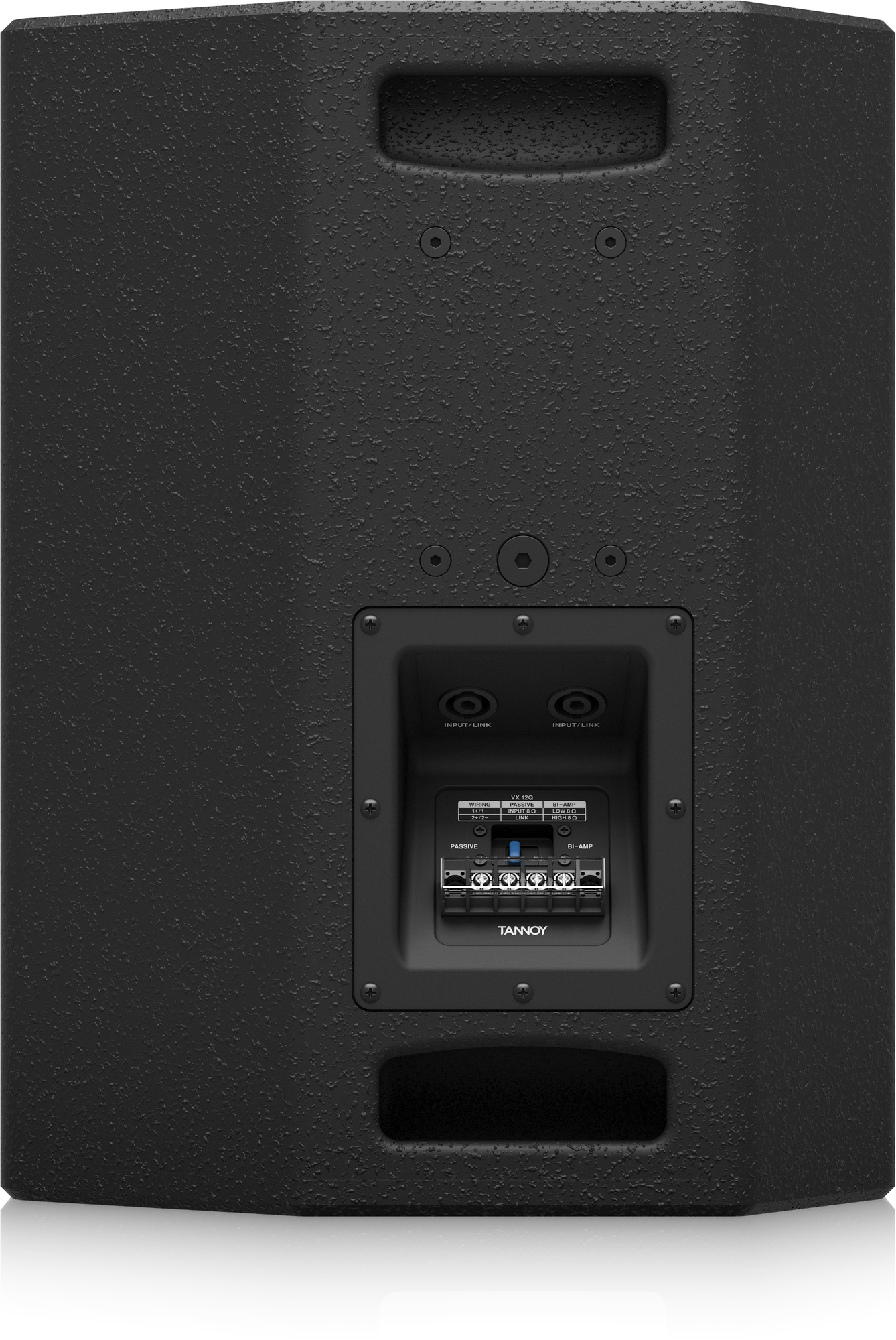

Finished in a hard wearing semi matt black paint, the vented and internally braced cabinet is constructed from 15 mm (⅝") plywood – and includes a rugged powder coated perforated steel mesh grille. Integrip handles ergonomically integrated into the top and bottom of cabinet make for easy transport. The rear panel connector plate carries industry-standard twist-locking speaker and barrier strip connectors for input and link connections to additional enclosures. VX 12Q loudspeakers are optimized for use with Lab Gruppen amplifiers, or Lake LM Series controllers. A full range of DSP settings to suit many configurations are provided for free download at tannoy.com.
