OCV 6

Coaxial pendant loudspeaker with a 150 mm mineral-loaded cone, 90° conical dispersion and a rotary transformer switch

Where to buy OCV 6 (0311-AAA)

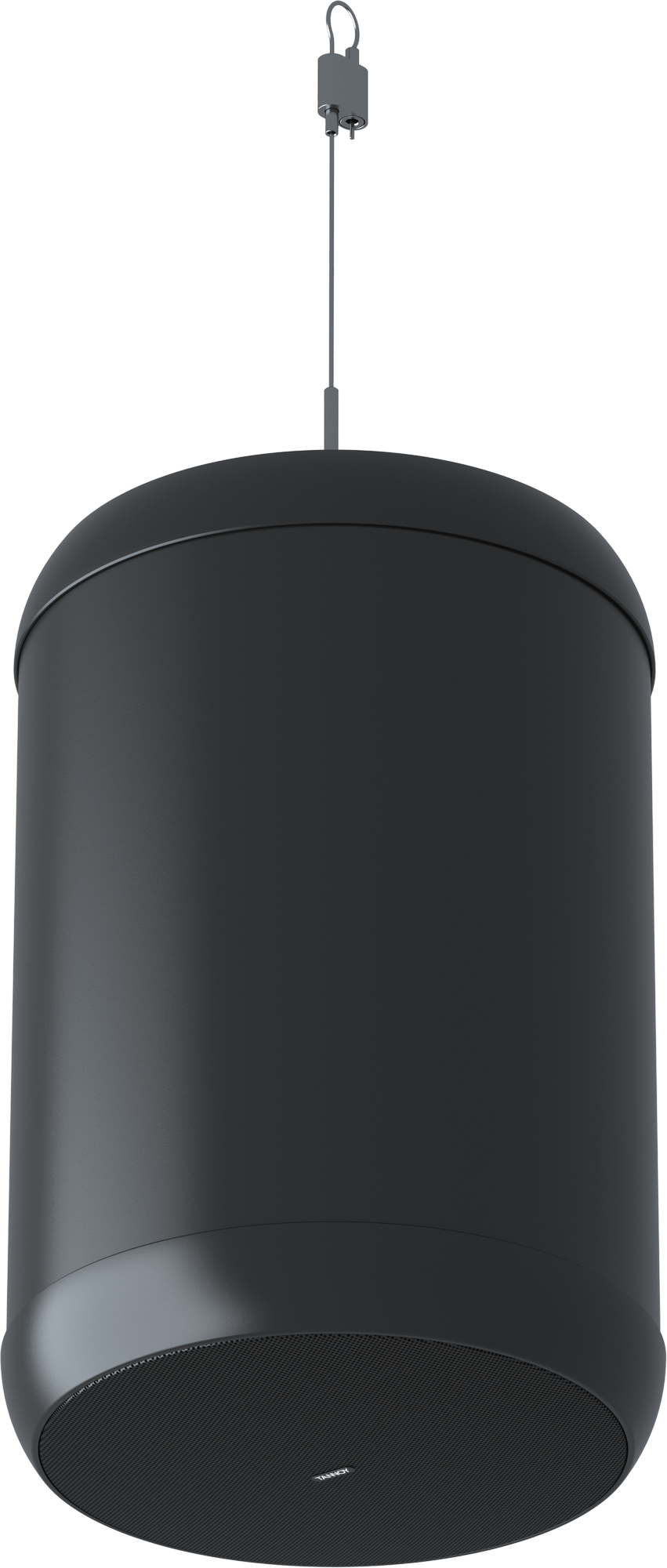

The hanging kit comes in the box.

Pendant speakers bring music and speech down from above. The OCV 6 pairs a 150 mm mineral-loaded cone with a 20 mm high-frequency unit in a coaxial design.

In the box: cables, boot and connector

Each OCV ships with a hanging cable, a safety cable, cable clamps and a terminal weather boot. A Euroblock connector, a screwed rod adaptor and cable ties complete the kit. It covers a 90° cone, from 80 Hz to 20 kHz at -3 dB.

OCV 6, image 2 of 9

Low impedance or a distributed line

A rotary switch sets the transformer, and the factory setting is low impedance. Keep it away from a 70/100 V amplifier until you have switched it out of low impedance. The Euroblock connector loops through to additional speakers.

OCV 6, image 3 of 9
