Mount it once and aim it where it counts.

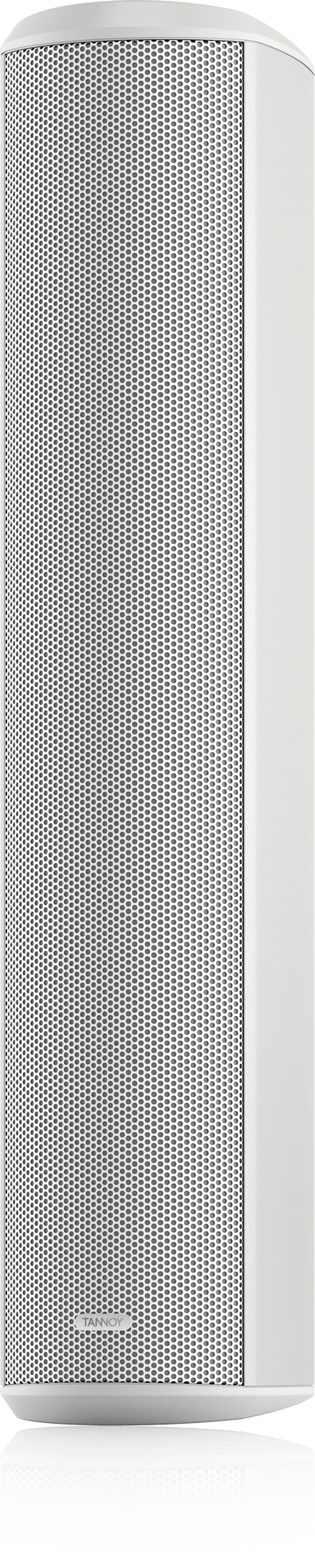

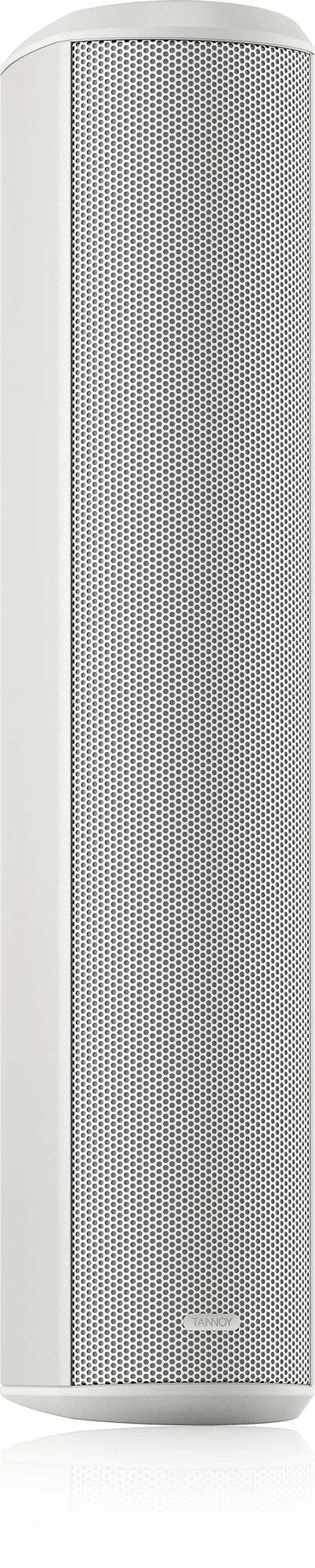

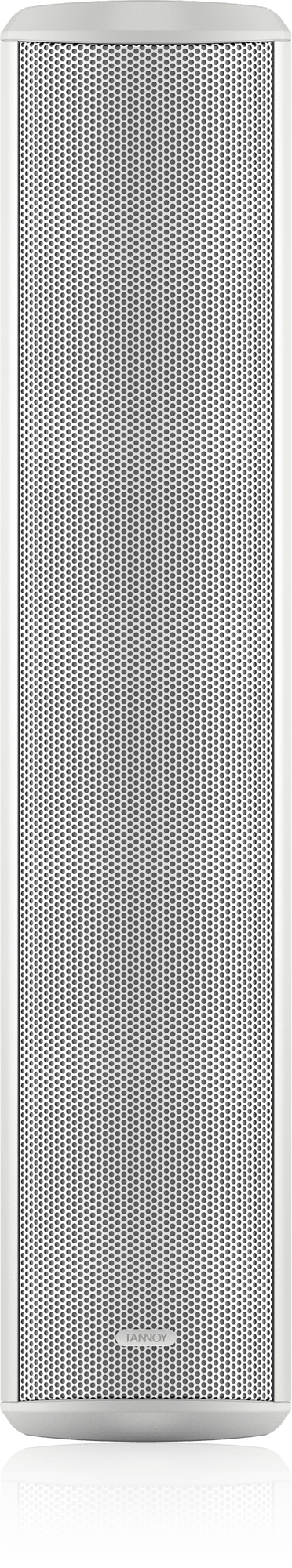

Install day goes faster when the hardware is already in the carton. The VLS 5-WH is supplied with a standard wall bracket and a flying bracket. It is an aluminium extrusion column of 8.2 kg, built for speech-only installations.
Angle it, fly it, or pan and tilt

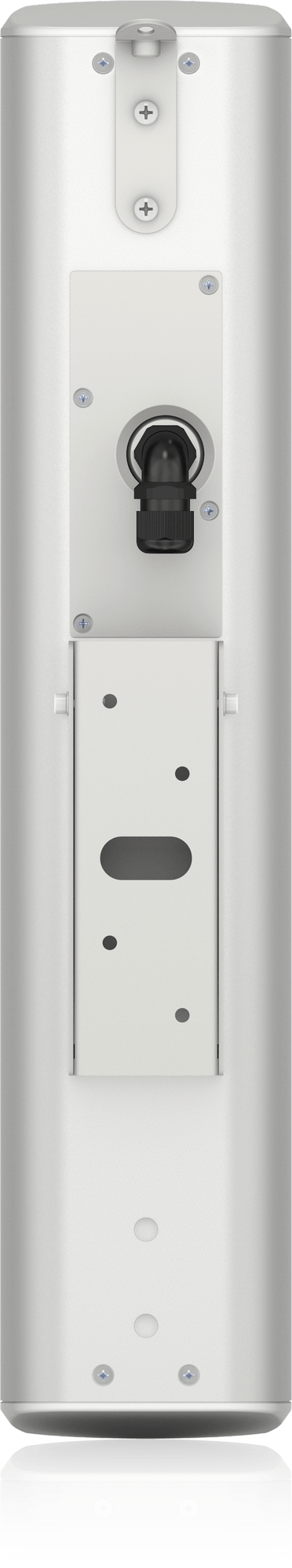

Two interlocking U plates form the wall bracket, and their slots set any angle from 0 to 6 degrees. For flying, the bracket fixes to the top two inserts with the supplied M6 screws. An optional pan-tilt bracket turns the column on both axes.
Coverage that suits a voice

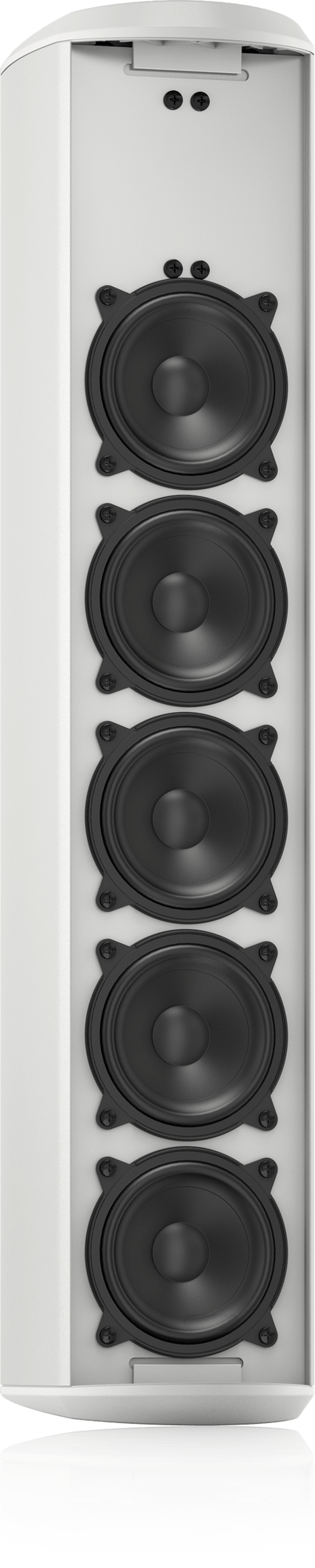

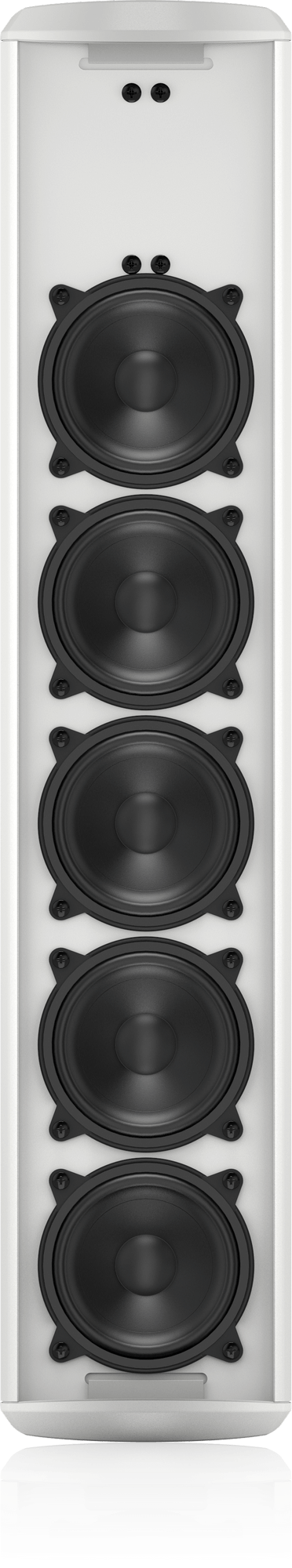

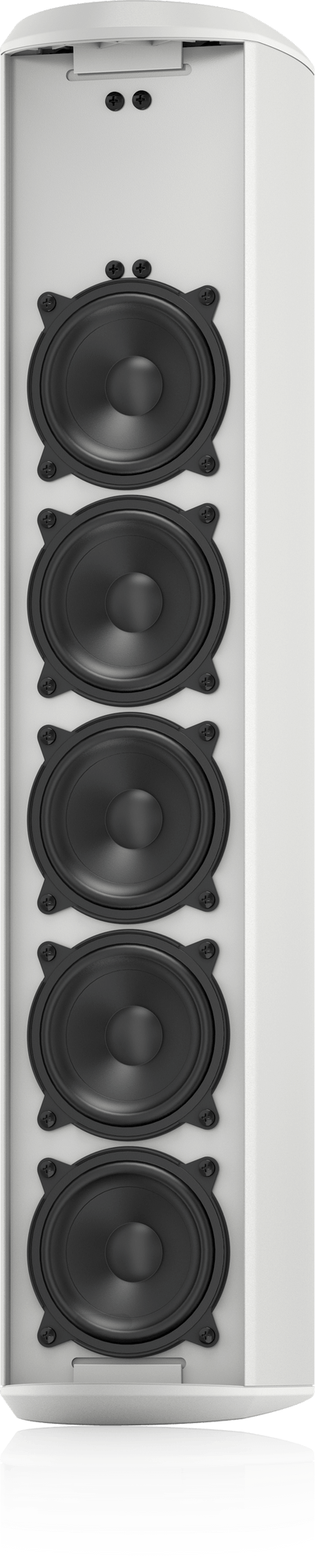

Five 89 mm drivers cover 130° across and 45° in height, measured at -6 dB. Its frequency response spans 150 Hz to 12 kHz within ±3 dB.
One cabinet for any line

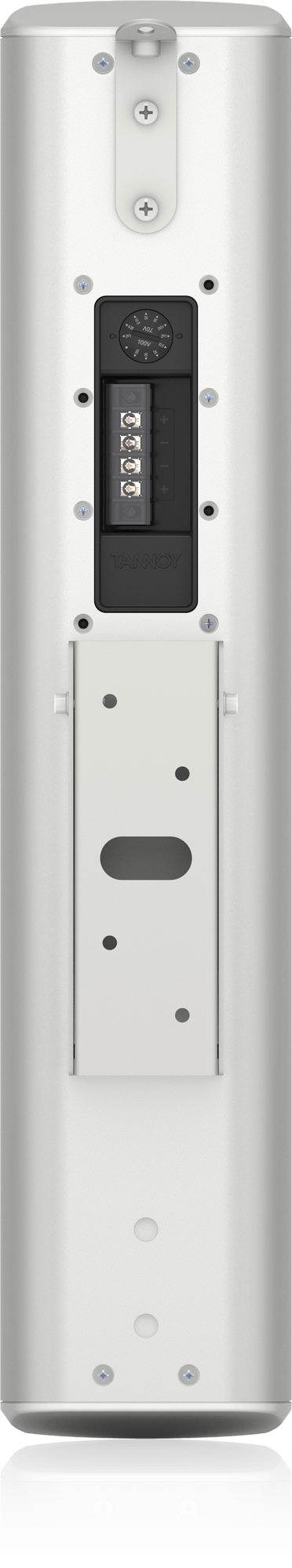

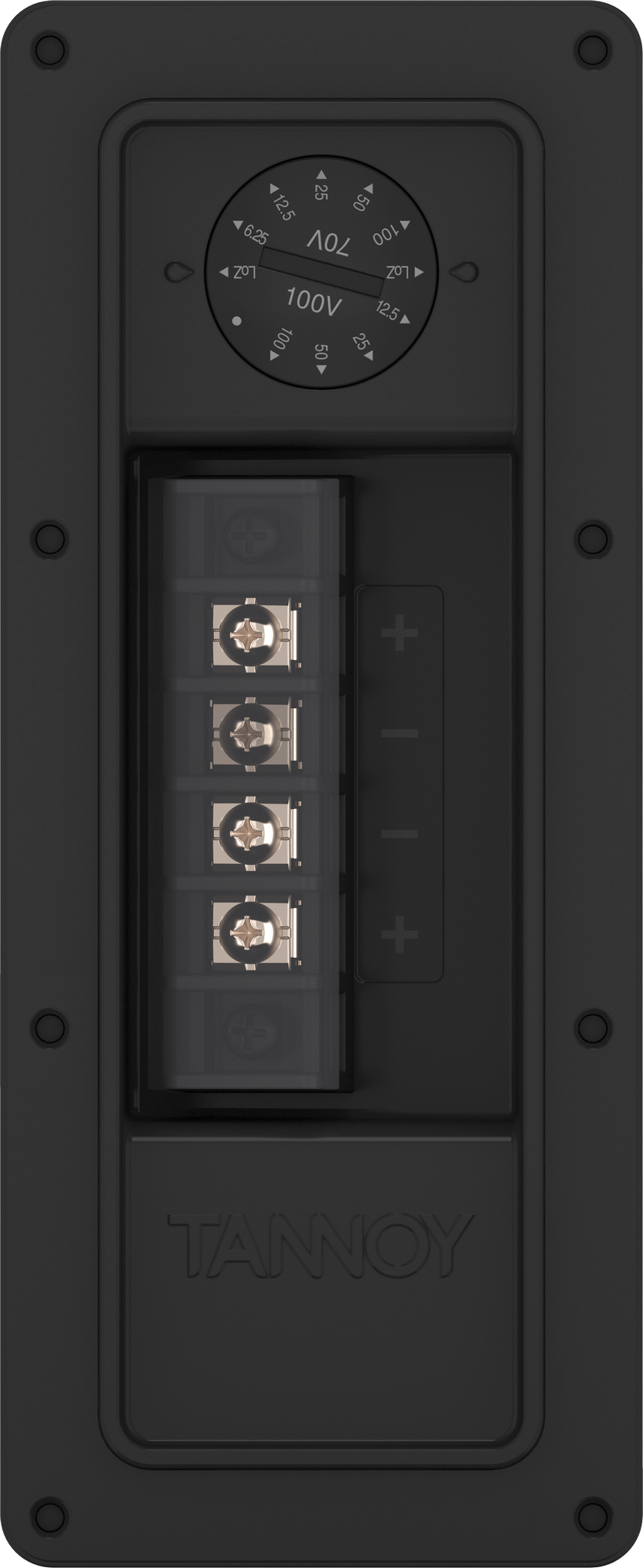

Choose low impedance, 70 V or 100 V at the rear input panel, using its multi-position rotary switch. On a distributed line, connect all transformer primaries in parallel to the amplifier output. The summed taps must not exceed the amplifier rating, and at least 3 dB of headroom is recommended.
