VLS 15 (EN 54)

Passive column array loudspeaker with 15 drivers, FAST dispersion control and EN 54-24 certification

Where to buy VLS 15 (EN 54) (0302-AAT)
VLS 15 (EN 54), image 1 of 8
VLS 15 (EN 54), image 2 of 8
VLS 15 (EN 54), image 3 of 8
VLS 15 (EN 54), image 4 of 8
VLS 15 (EN 54), image 5 of 8
VLS 15 (EN 54), image 6 of 8
VLS 15 (EN 54), image 7 of 8
VLS 15 (EN 54), image 8 of 8
VLS 15 (EN 54), image 1 of 8

1 of 8

Where to buy VLS 15 (EN 54) (0302-AAT)

For announcements that people need to hear.

In a voice alarm system, an announcement only helps if people hear it clearly. VLS 15 (EN 54) is EN 54-24 certified for use in fire detection and fire alarm systems.

Coverage shaped downward

FAST technology gives an asymmetrical vertical pattern of +6/-22 degrees, shaping coverage towards the lower quadrant. Horizontal dispersion is 130°. The directivity factor (Q) averages 9.1 from 1 kHz to 10 kHz.

VLS 15 (EN 54), image 2 of 8

Fits low impedance or 70/100 V systems

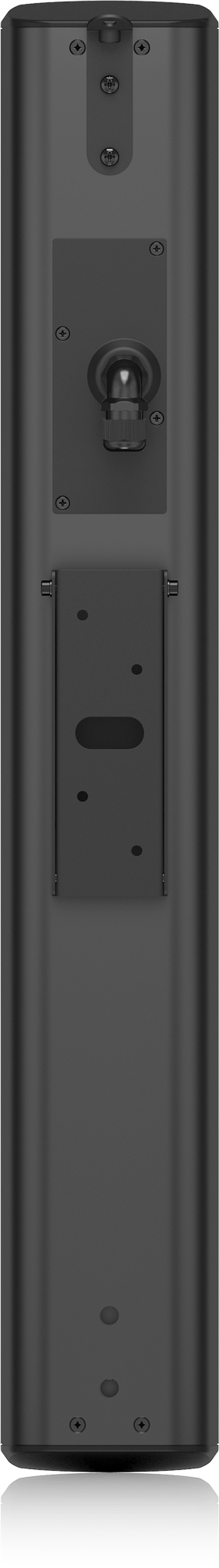

A rotary switch on the rear input panel sets the mode. Choose low impedance, or 70 V or 100 V with transformer taps. Two internally paralleled barrier strip connectors let you link further loudspeakers.

VLS 15 (EN 54), image 3 of 8
