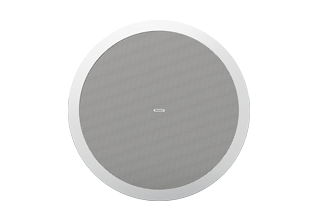

Full-range ceiling loudspeaker with a 200 mm (8.0") Dual Concentric driver and a pre-fitted blind-mount backcan
The CMS 803DC BM is a full bandwidth 360-Watt high sensitivity loudspeaker that utilises our third generation Ceiling Monitor System technology (CMS 3.0). Thanks to an all-new proprietary 8" Dual Concentric pointsource driver with Omnimagnet technology on a Torus Ogive Waveguide, the UL certifi ed CMS 803DC BM delivers wide and consistent broadband directivity with enhanced intelligibility – plus highly accurate and linear response.
Specifically designed with a 5 way self-aligning clamp system for fast, simple and cost effective installation, CMS 803DC BM features an acoustically enhanced zinc plated steel back can, and a removable locking screw terminal connector with loop-thru functionality. A low insertion loss 60 W transformer with convenient front panel tap switching, paintable powder coated steel mesh grille with dust protection, two tile support rails and one C-ring are all included. An Arco style grille, which conceals the entire unit for aesthetic purposes, and plaster (mud) ring are available separately.
The CMS 803DC BM is finished in semi matt white and optimised for use with LAB GRUPPEN LUCIA amplifiers, which accommodate up to 8 CMS Series loudspeakers per channel.
